Sleeps 7
-
2 Slides
-
Front Bedroom
-
35ft Long
-
10,780 lbs
-
Galaxy
Specifications
Sleeps | 7 | Slides | 2 |
Length | 35 ft | Ext Height | 13 ft 5 in |
Interior Color | Galaxy | Hitch Weight | 2240 lbs |
GVWR | 14000 lbs | Dry Weight | 10780 lbs |
Fresh Water Capacity | 150 gals | Grey Water Capacity | 50 gals |
Black Water Capacity | 50 gals | Tire Size | 16" |
Furnace BTU | 30000 btu | Generator | 4.0K Onan with Transfer Switch |
Fuel Capacity | 40 gals | Number Of Bunks | 1 |
Available Beds | Queen | Refrigerator Type | Side by Side Four Door |
Refrigerator Size | 18.3 cu ft | Cooktop Burners | 3 |
Number of Awnings | 1 | Axle Weight | 8540 lbs |
Garage Size | 19 ft 10 in | LP Tank Capacity | 30 lbs |
Water Heater Capacity | 10 gal | Water Heater Type | Electric DSI Quick Recovery |
AC BTU | 15000 btu | TV Info | LR 50" TV, BR 32" TV |
Awning Info | Electric with LED Light | Axle Count | 2 |
Number of LP Tanks | 2 | Shower Type | Radius |
Electrical Service | 30 amp | VIN | 5lzbf3027rr021126 |
Description
Eclipse Attitude Wide Lite toy hauler 3016SS highlights:
- Peninsula Counter
- Electric Bed/Dinette
- Double Entry Bath
- Two Lounge Chairs
- Queen Bed
- USB Chargers
Family outdoor fun with your toys and camping with comforts like home can be found when you have this fifth wheel set up! You will have your own privacy in the front bedroom when you like, plus a queen bed to sleep on while the kiddos sleep on the electric bed above the dinette seats. Someone might even sleep on the sofa within the slide. Make warm meals using the kitchen amenities, and the peninsula counter offers space to prepare and serve food plus dry the dishes. You will find storage throughout in overhead cabinets, and the front bedroom even offers a wardrobe slide option for more floor space and storage. And don't forget about the 16' to 19'10" of cargo space for your toys to travel safely!
With each Eclipse Attitude Wide Lite toy hauler you begin with a powder coated chassis with laminated, aluminum framed fiberglass sidewalls and fiberglass caps with the front cap having an LED light, and a decked walk-on roof. The 100 AMP lithium LiFePO4 battery/210 watt solar panel, the 40 gallon fuel station, and the 4.0K Onan generator with transfer switch will keep everything up and running when you venture off-grid. The interior offers several colors to choose from to customize your toy hauler, LED lights with a dimmer, versatile sleeping accommodations, and a lighted solid surface galley top. The Hi Rez LED lights, the curbside under glow LED lighting and the Hi Def exterior graphics offer the attitude you are looking for! Make your selection today!
INCLUDED PACKAGES & OPTIONS
330 Watt Solar Panel w/Inverter
Elec. Bed/Dinette w/Tables (high clearance)
Refrigerator - 8 cf.
Living Room Slide
50" Living Room TV
G-Rated Tires
Frost Pine Wood
Graphics: RED
2nd A/C Bedroom - 13.5K BTU
6 Point Hydraulic Auto Leveling
Fantastic Fan w/Wireless Cont.
Generator - 5.5KW Onan w/Transf.
100 Amp Lithium (LiFePO4) Battery
MorRyde Ramp Patio Fence
Refrigerator - Side-by-side 4
Wardrobe Slideout
Enclosed Tanks - Heated
Vermont Elm Wood
RVIA Tag
Features
Standard Features
Exterior
- 100 AMP Lithium (LiFePO4) Battery/330 Watt Solar Panel
- 7,000 LB Axles w/ Zerk Fittings and Self-Adjusting Brakes (8,000 LB Axles on 3322SAG) (Only FW)
- Aluminum Wheels - Deluxe 16" Black w/G-Rated Tires (Only FW)
- Black Aluminum Fender Skirts (Only FW)
- Aluminum Wheels
- Curbside Under Glow LED Lighting
- Decked Walk-on Roof
- Electric Awning w/ LED Light
- Exterior Shower
- Fuel Station - 40 Gallon
- Generator - 4.0K Onan w/Transfer Switch
- Gray Fiberglass Caps- Front (w/ LED) (Only FW)
- Gray Fiberglass Sidewalls- Aluminum Framed (Laminated) (Only FW)
- Fiberglass Caps - Front (w/LED)
- Fiberglass Sidewalls - Aluminum Framed (Laminated)
- HD Digital Antenna w/ Park Cable Hookup
- Heavy Duty Axles w/ Zerk Fittings and Self-Adjusting Brakes
- Hi Rez LED Lights - Running, Flood (DS-2, Rear-2, Porch-1)
- Lights - Hitch and Step
- LP - Dual 30 Lbs w/ Custom LP Cover
- LP- Dual 30 Lbs. (Only FW)
- Powder Coated Chassis w/Double Radius Entry Step
- Power Tongue Jack
- Ramp Door w/Cables- 7' Clean Grip Lined (3,000 lbs. Rating)
- Spare Tire w/Carrier
- Stabilizer Jacks - 4 (High Clearance)
- Stabilizer Jacks- Rear (High Clearance) (Only FW)
- Swing-away Entry Door Assist Handle
- Tank Capacities - 150 Fresh, 50 Gray, 50 Black w/ Tank Flush
- Ultra Strong Bonded Floor
Interior
- 2 Chairs with Bay Window
- 30 AMP Service
- A/C Living Room (Ducted on FW)
- Electric Bed / Dinette (Bottom Bunk) w/ Ladder
- Electric Fireplace in Livingroom (32GSG Only)
- Furnace - 30K BTU Ducted
- Glass Enclosed Shower w/Skylight
- LED Lights w/Dimmer
- Lighted Solid Surface Galley Top- Drop Range w/Glass Cover
- Living Room Slide
- Microwave w/Built-in Range Hood - Range/Oven
- Pillowtop Mattress w/Bedspread and Shams
- Pleated Shades
- Refrigerator - XL Double Door (TT)
- Refrigerator- Side-by-Side 4 Door (FW)
- SS Single Bowl Galley Sink w/Pull-out Faucet & Water Filter
- Stereo - Rockford Fosgate Deluxe System w/ Upgraded Speakers, 2 Amps, 10" Sub
- Tankless Water Heater
- TV - Living Room (50" Class) (50" & 32" Class on 3016GS, 32IBG, 3016SS & 3322SAG)
- USB Chargers - 12V (One in Galley & One in Bedroom)
Optional Upgrades
- 2nd 100 Amp Battery
- 2nd A/C Bedroom- 13.5K BTU (Req's 5.5 Gen Opt.)
- 2nd A/C Bedroom w/ 4K Gen (High Efficiency)
- Aluminum Wheels- Deluxe 16" (Only 321BG)
- 6- Point Hydraulic Auto Leveling (Only FW)
- 8,000 Lbs. Axles IPO Std. (Only FW) (Std 3322SAG)
- Ceiling Fan- 12V
- Enclosed Tanks- Heated
- Fantastic Fan in Bathroom IPO STD
- Fantastic Fan in Bedroom
- Fantastic Fan w/ Wall Switch in Kitchen IPO STD
- Folding Roof Ladder
- Generator- 5.5K Onan w/ Transfer Switch & 50 Amp
- Girard Electric Awning w/ Wind Sensor
- Heavy Duty Electric Stabilizer Jacks ( Front & Rear)
- Inverter- 2000 Watt
- Kicker Stereo System w/ App Controls
- MorRyde Ramp Patio Fence
- MorRyde Ramp Patio Steps
- MorRyde Steb Above Entry Steps
- Off-the-Grid Hybrid X (Only FW)
- Pull Down Rear Screen
- Rear Girard Electric Awning w/ LED Light
- Roadside Hi Rez LED Flood Lights (2)
- Solar Panel Expansion- 330 Watt (2nd Panel)
- Speakers on Rear Electric Awning (Rear Awning Opt. Req'd)
- Stainless Steel Appliances
- TV-Bedroom (32" Class- Smart TV)
- Wardrobe Slideout
- Windows- Frameless
- Winterize
- White Fiberglass
Optional Centurion Package
- Solid Surface Lavy Top w/ Glass Bowl & DIY Faucet
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.

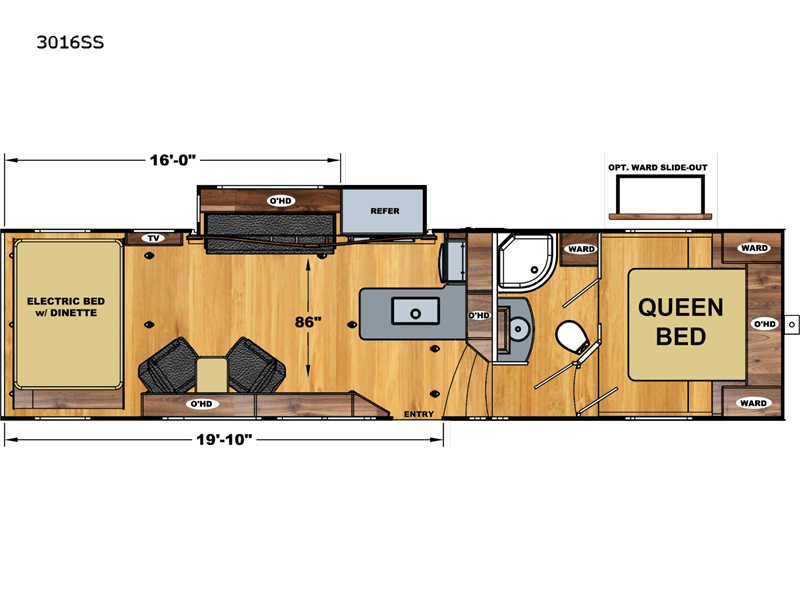

3016SS Floorplan
